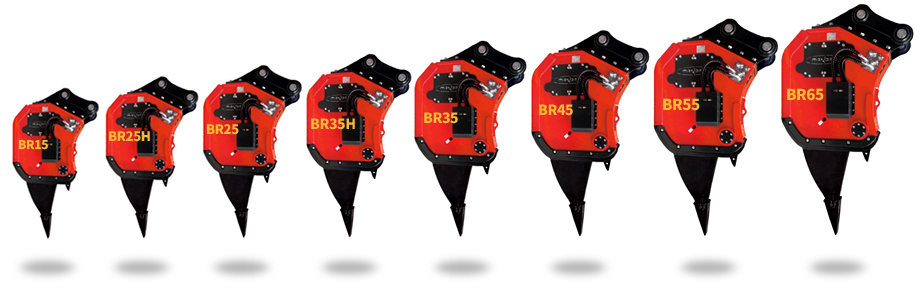

Maxbrio Ripper series

Specifiaction

Model Units BR15 BR25H BR25 BR35H BR35 BR45 BR55 BR65
Applicable Excavator ton 12~17 18~27 28~35 36~42 43~55 56~65
Frequency rpm 1700 2500 1700 2500 1700 1700 1700 1700
Hz 28.3 41.6 28.3 41.6 28.3 28.3 28.3 28.3
Setting Oil Pressure kg/cm2 250 260 250 260 250 250 250 250
psi 3556 3556 3556 3698 3556 3556 3556 3556
Required Oil Flow l/min 100~120 150~170 120~140 180~200 180~200 260~280 290~310 320~350
gpm 26.4~31.7 39.6~45 31.7~37 47.5~52.8 47.5~52.8 68.7~74 76.6~81.8 84.5~92.5
Air spring Pressure Bar 4 4 3 4 4 3 3 3
Dimension Height (A) in 70 91 97 96 104 115 119 134
mm 1770 2316 2468 2448 2630 2912 3018 3416
Length (B) in 41 43 48 45 52 57 59 64
mm 1030 1095 1208 1152 1310 1440 1486 1617
Width (C) in 30 32 32 32 34 36 37 41
mm 760 806 806 825 855 913 928 1033
Tooth (D) inch 10 19 19 19 19 19 23 23
mm 265 470 470 470 470 470 575 575
Weight lb 2866 4189 4938 5423 6526 8289 9612 12254
kg 1300 1900 2240 2460 2960 3760 4360 5570

* The above specifications are subject to change without prior notice for the quality enhancement.

  • Maxbrio Ripper series
  • Maxbrio Damper
  • Maxbrio Vibro Bucket
  • Maxbrio Hammer

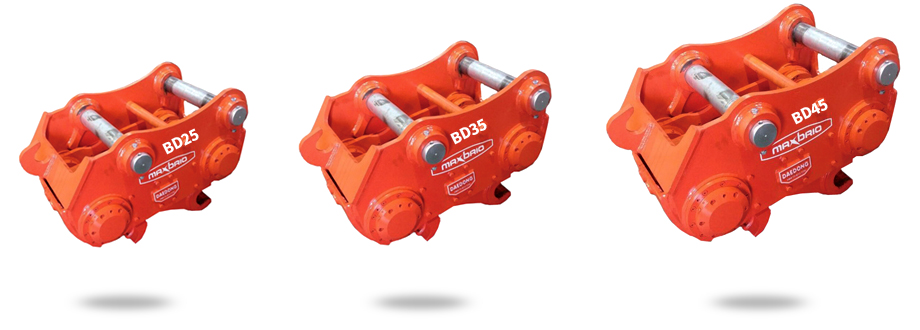

Maxbrio Damper

Specifiaction

Model Units BD25 BD35 BD45
Applicable Excavator ton 18~27 28~35 36~42
Dimension Height (H) in 24.8 27.9 37.2
mm 630 708 945
Length (L) in 35.8 40.2 53.5
mm 910 1020 1360
Width (W) in 23.6 26.6 35.4
mm 600 676 900
Pin Height (H1) in 17.7 19.7 26.8
mm 450 500 680
Pins Distance(L1) in 17.9~19.3 19.9~20.7 20.6~22
mm 455~490 505~525 525~560
Mounting Distance (L2) in 17.9~19.3 19.9~20.7 20.6~22
mm 455~490 505~525 525~560
Mounting Width (W1) in 12~13.4 14.7~17 15~17.2
mm 305~340 375~432 386~439
Pin Diameter (D) in 2.7~3.1 3.1~3.9 3.5~4.7
mm 70~80 80~100 90~120
Weight lb 1212 1433 1653
kg 550 650 750

* The above specifications are subject to change without prior notice for the quality enhancement.

  • Maxbrio Ripper series
  • Maxbrio Damper
  • Maxbrio Vibro Bucket
  • Maxbrio Hammer

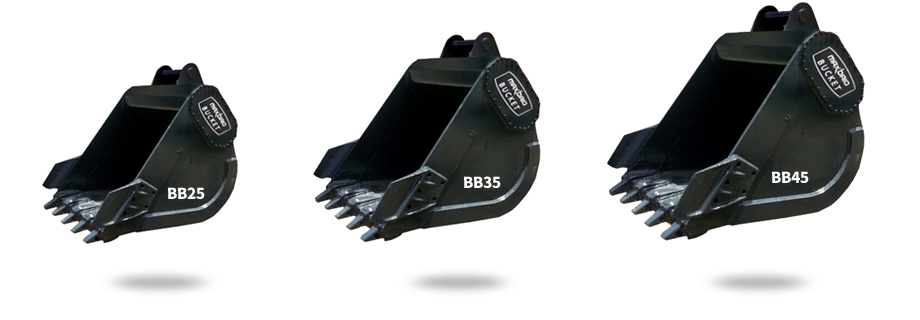

Maxbrio Vibro Bucket

Specifiaction

Model Units BB25 BB35 BB45
Applicable Excavator ton 18~27 28~35 36~42
Frequency vpm 2500 2500 2500
Hz 41.6 41.6 41.6
Setting Oil Pressure kg/cm2 250 250 250
psi 3556 3556 3556
Required Oil Flow l/min 120~140 180~200 260~280
gpm 31.7~37 47.5~52.8 68.7~74
Dimension Height (H) in 64.2 70.9 94.5
mm 1630 1800 2400
Length (L) in 34.6 38.6 51.2
mm 880 980 1300
Width (W) in 46.9 52.0 69.3
mm 1190 1320 1760
Pins Distance (L1) in 17.9~19.3 19.9~20.7 20.6~22
mm 455~490 505~525 525~560
Mounting Width (W1) in 12~13.4 14.7~17 15~17.2
mm 305~340 375~432 386~439
Pin Diameter (D) in 2.7~3.1 3.1~3.9 3.5~4.7
mm 70~80 80~100 90~120
Weight lb 2690 2998 3373
kg 1220 1360 1530

* The above specifications are subject to change without prior notice for the quality enhancement.

  • Maxbrio Ripper series
  • Maxbrio Damper
  • Maxbrio Vibro Bucket
  • Maxbrio Hammer

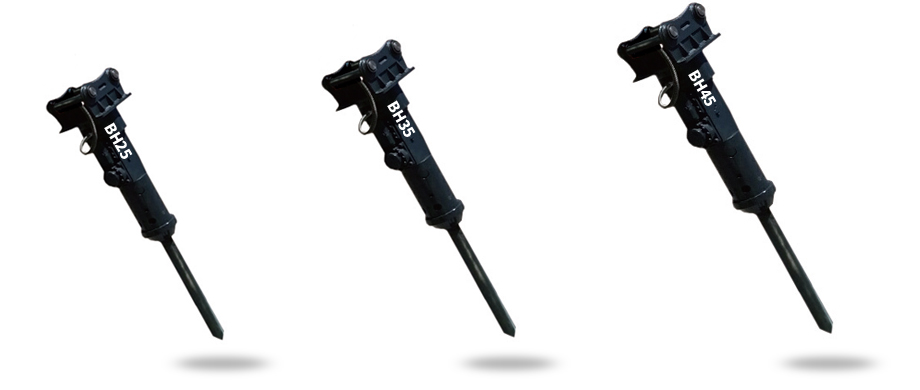

Maxbrio Hammer

Specifiaction

Model Units BH25 BH35 BH45
Applicable Excavator ton 20~27 28~35 36~42
Impact Rate bpm 300~420 280~400 200~350
Setting Oil Pressure kg/cm2 210 210 210
psi 2987 2987 2987
Required Oil Flow l/min 120~180 180~250 200~260
gpm 31.7~47.6 47.6~66 52.8~68.7
Dimension Length (L) in 90.6 106.3 114.2
mm 2300 2700 2900
Tool diameter (D) in 5.3 6.1 6.5
mm 135 155 165
Weight lb 3960 5060 6380
kg 1800 2300 2900

* The above specifications are subject to change without prior notice for the quality enhancement.

For further Maxbiro Series details, You can download Maxbrio Series Catalogue at Download section, PR CENTER.
