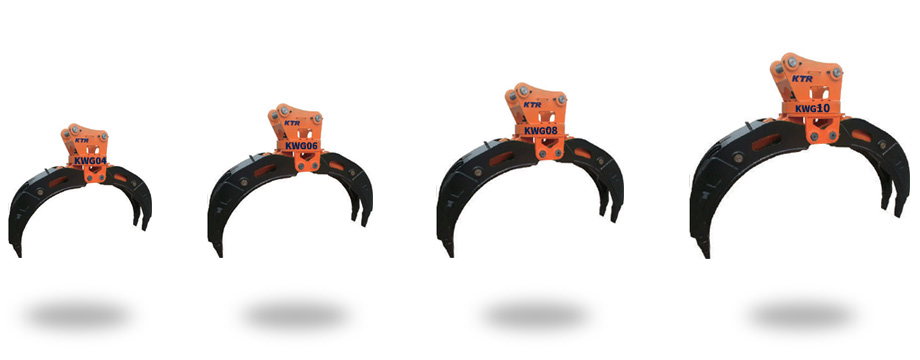

WOOD GRAPPLE

Features

  • Outstanding performance at the logging site.
  • With grove inside, it prevents the grabbed material form falling down.
  • Equipped counter-turning device.

Specifiaction

Model Unit KWG04 KWG06 KWG08 KWG10
7 – 12 Ton 12 – 17 Ton 17 – 24 Ton 24 – 36 Ton

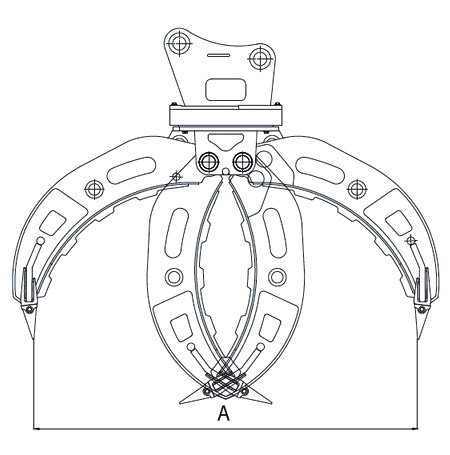

Max Jaw opening (A) ton 1400 1800 2300 2500
Operating flux lpm 50~100 90~110 100~140 130~170
Cylinder volume Ton 4.5×2 8.0×2 9.7×2 12.0×2
Oil pressure Kg/cm2 120~160 150~170 160~180 160~180
Set up pressure Kg/cm2 180 190 200 210
Weight Kg 390 740 1380 1700
Application excavator Ton 7~12 12~17 17~24 24~30

*The specifications of this equipment are subject to change for improvements.

  • WOOD GRAPPLE
  • STONE GRAPPLE

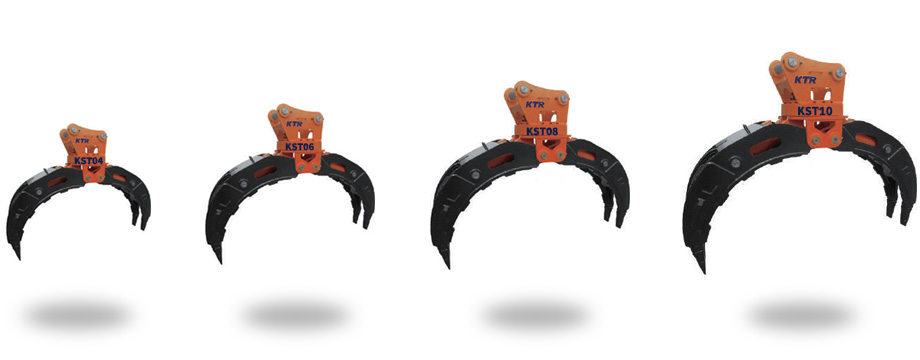

STONE GRAPPLE

Features

  • The safety check valve installed on cylinders.
  • Excellent abrasion resistance steel used
  • Optimized in carrying stone
  • Equipped counter-turning device.

Specifiaction

Model Unit KST04 KST06 KST08 KST10
7 – 12 Ton 12 – 17 Ton 17 – 24 Ton 24 – 36 Ton

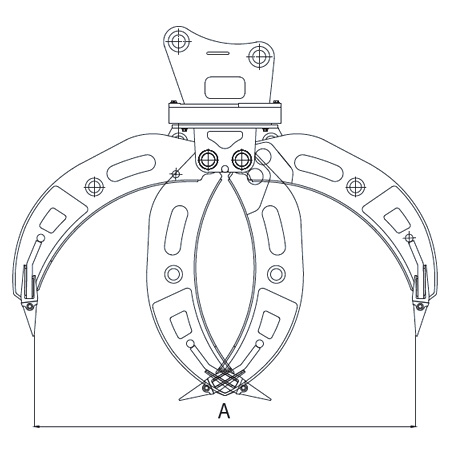

Max Jaw opening (A) ton 1400 1800 2300 2500
Operating flux lpm 50~100 90~110 100~140 130~170
Cylinder volume Ton 4.5×2 8.0×2 9.7×2 12.0×2
Oil pressure Kg/cm2 120~160 150~170 160~180 160~180
Set up pressure Kg/cm2 180 190 200 210
Weight Kg 390 740 1380 1700
Application excavator Ton 7~12 12~17 17~24 24~36

*The specifications of this equipment are subject to change for improvements.
