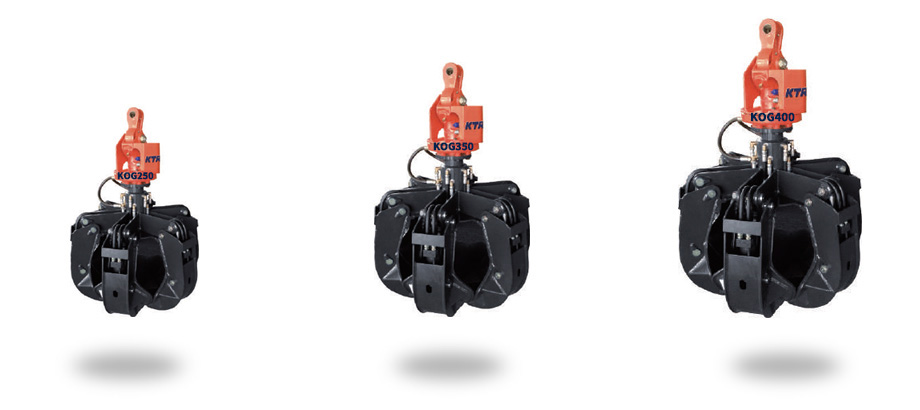

ORANGE GRAPPLE

Features

  • Superior Performance especially for loading and unloading large amount of scrap metal.
  • Built-in cylinders inside grab prevent damage from external shocks and abrasion
  • Number of grabs are option: 4~6 grabs

Specifiaction

Model Unit KOG250 KOG350 KOG400
3.5 Ton 4.5 Ton 5-11 Ton
Max Capacity LT 250 350 400

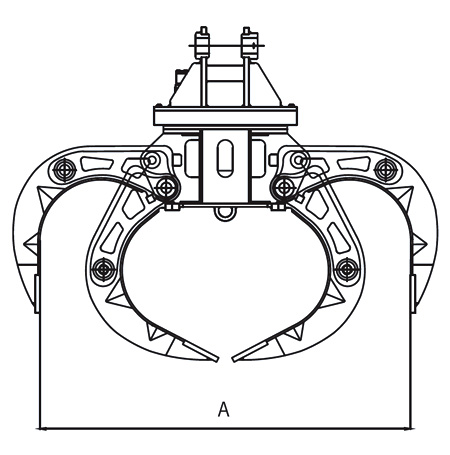

Max Jaw opening (A) Mm 1400 1500 1600
Max pressure Kg/cm2 350 350 350
Max Rotating pressure Kg/cm2 150 150 150
Normal rotation Rpm 15 15 15
Weight Kg 340 400 430
Application excavator ton 3.5 4.5 5 ~ 11

* The specifications of this equipment are subject to change for improvements.

  • ORANGE GRAPPLE
  • SCRAP GRAPPLE

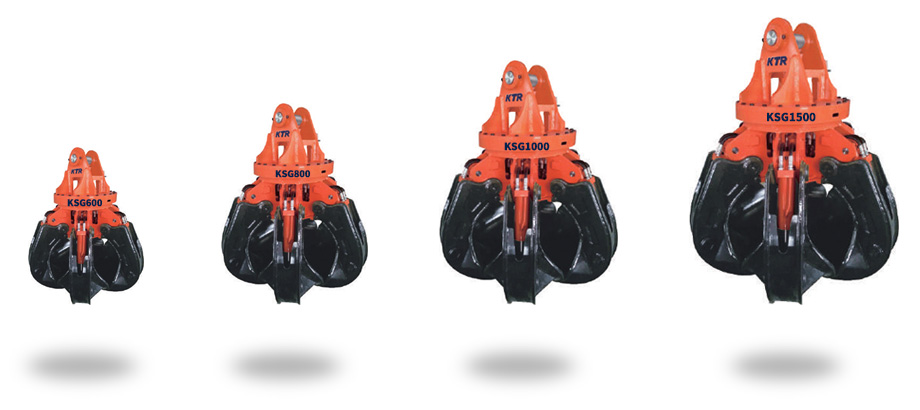

SCRAP GRAPPLE

Features

  • High precision swing bearing equipped for grab rotating
  • Built-in cylinders inside grab prevent damage from external shocks and abrasion.
  • Superior loading and unloading capacity in handling scrap metal
  • AR steel grab tip
  • Number of grabs are option: 4~6 grabs

Specifiaction

Model Unit KSG600 KSG800 KSG1000 KSG1500
12-17 Ton 17-25Ton 25-36Ton 36 – 45Ton
Max Capacity LT 600 800 1000 1500

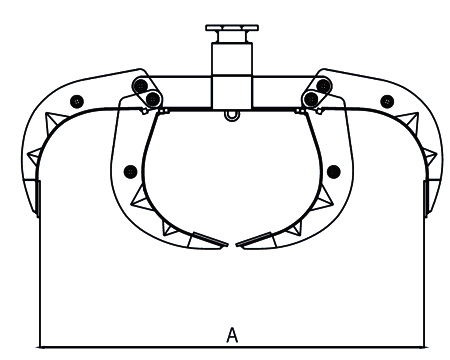

Max Jaw opening (A) mm 1600 1850 2050 2350
Max pressure Kg/cm2 350 350 350 350
Max Rotating pressure Kg/cm2 150 150 150 150
Normal rotation Rpm 15 15 15 15
Weight Kg 740 1100 1500 2200
Application excavator Ton 12~17 17~25 25~36 36~45

* The specifications of this equipment are subject to change for improvements.
