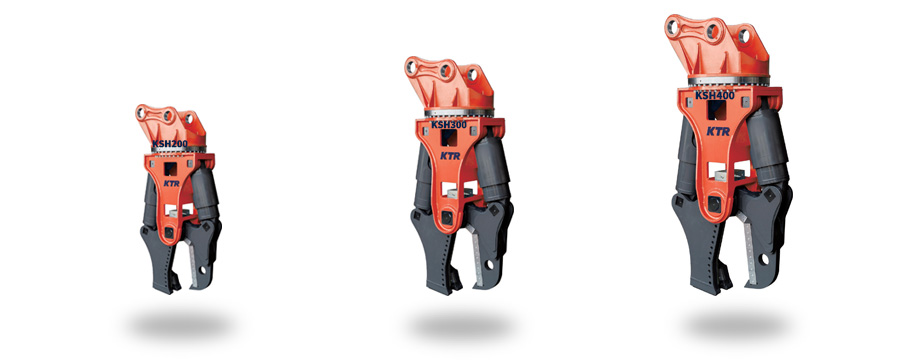

SHEARS

Functions



Features

  • Hydraulic gap adjuster. [World’s first]
    (For the durability improvement of body, pin jaw-blade life)
  • Increased working speed with speed-up valve.
  • Upgraded wear-resistant design.
  • Cylinder protection cover; easily detached and installed.
  • KTR’s unique cutter array increases cutting force and productivity
  • Cutter guide blades prevent scrap jam outbreak.
  • 360°rotating.

Specifiaction

Model Unit KSH200 KSH300 KSH400
18-28 ton 28-36 ton 36-50 ton
Shears weight kg 1920 2980 4450
Overall length mm 2130 2765 3150
Max Opening Width (Jaw) mm 495 572 695
Oil flow rate lpm 150-250 180-270 280-360
Cutting force (End) ton 85 105 215
Cutting force (Mid) ton 150 210 295
Cutting force (Max) ton 320 500 730

* The specifications of this equipment are subject to change for improvements.
