Vibro Hammer

Functions

Features

Lower maintenance cost than crane hammer.
Easier operation even in critical regions such as down-town, bridge area and the vicinity of high-voltage wire.
Outstanding workability and mobility
Specially designed anti-vibro rubber pad installed.|
Equipped with high-powered hydraulic motor and special bearing against high frequency vibration
Easy installation by using excavator’s breaker hydraulic lines.
20% increased pile driving power compared to the existing equipment
Wear-resistant design and 360° slewing rotation.

Specifiaction

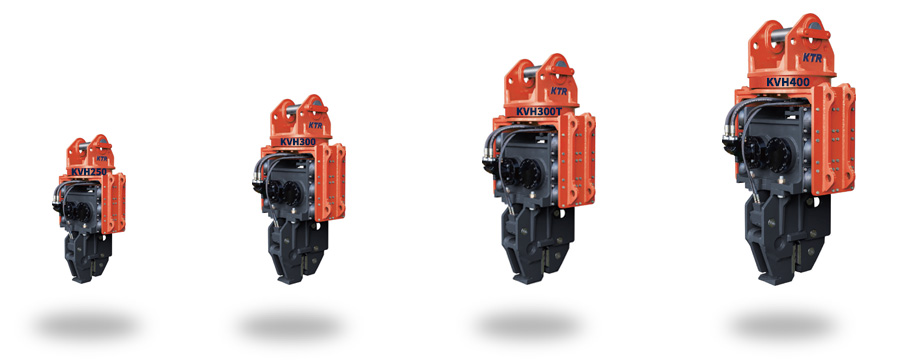

Model	Unit	KVH250	KVH300	KVH300T	KVH400
Suitable Excavator	ton	18~26	25~35	25~35	34~45
Weight	kg	1550	1700	1850	1800
Ext. Boom Weight (Incl. Mounting Cap)	kg	600	650	650	700

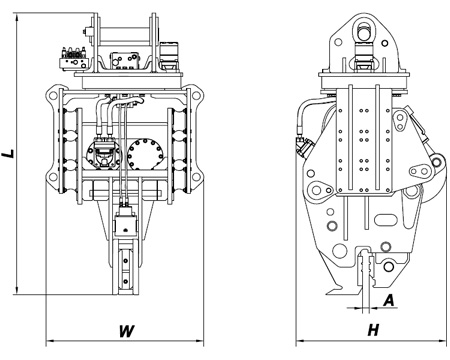

Dimension(LxWxH)	mm	1840X1040x750	1900x1100x790	1975x1110x1055	1920x1190x840
Frequency	bpm	2800~3500	2500~3500	2500~3500	2000~2700
Clamp Width(A)	mm	65	65	65	65
Slewing	degree	360	360	360	360
Eccentric Moment	Nm/in lbs	66/584	80/708	80/708	100/885
Centrifugal Force	KN	450	500	500	550
Amplitude	mm	12	14	14	16
Max. Oil Flow	lpm	200	240	240	260
Max. Oil Pressure (Min. Setting Pressure)	bar	350 (300)	350 (300)	350 (300)	350 (300)

* Above specifications are subject to change without prior notice for performance enhancement
