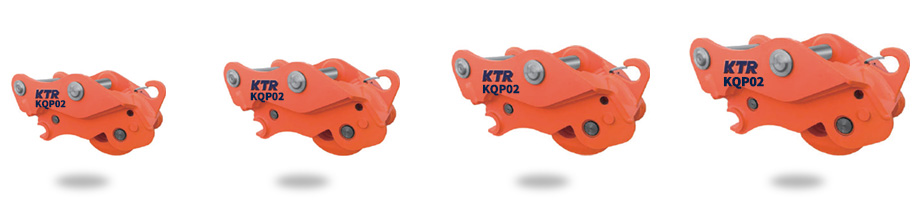

FIXED TYPE

Features

  • Shorten the changing time with fast removable coupler.
  • Safety device to prevent coming loose.
  • Enough room for the safety pin.

Specifiaction

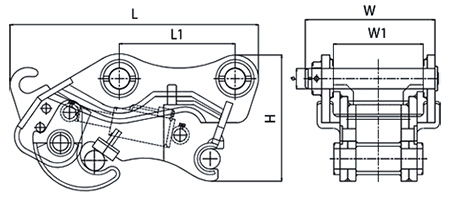

Model Unit FIXED TYPE
KQP02 KQP04 KQP06 KQP08
Weight Kg 50 ~ 60 100 ~ 150 180 ~ 200 350 ~ 380
Length ( L) mm 490 ~ 540 610 ~ 640 780 ~ 800 880 ~ 910
Height (H) mm 260 ~ 280 330 ~ 340 380 ~ 390 440 ~ 450
Width (W) mm 270 ~ 285 330 ~ 340 370 ~ 400 470 ~ 490
Installation Length (L1) mm 230 ~ 280 260 ~ 310 260 ~ 390 440 ~ 475
Installation Width (W1) mm 155 ~ 165 180 ~ 230 220 ~ 265 300 ~ 340
Pin Diameter Ø 45 ~ 50 50 ~ 60 50 ~ 70 70 ~ 80
Application Excavator Ton 3 ~ 6 6 ~ 10 10 ~ 17 17 ~ 25

* The specifications of this equipment are subject to change for improvements.

  • FIXED TYPE
  • FREE TYPE

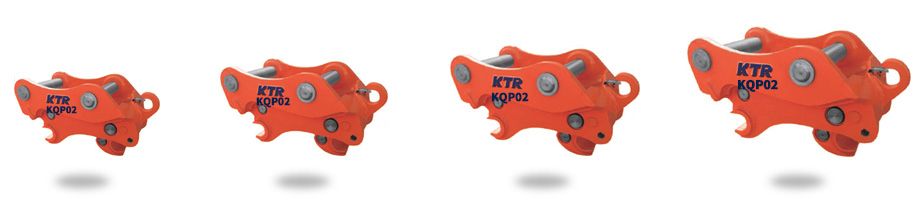

FREE TYPE

Features

  • Durable structure .
  • Double safety device.
  • Shorten the changing time with fast removable coupler
  • Enough room for the safety pin.

Specifiaction

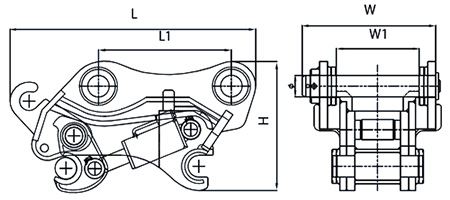

Model Unit FREE TYPE
KQP02 KQP04 KQP06 KQP08
Weight Kg 50 ~ 60 100 ~ 150 180 ~ 200 350 ~ 380
Length ( L) mm 490 ~ 540 610 ~ 640 780 ~ 800 880 ~ 910
Height (H) mm 260 ~ 280 330 ~ 340 380 ~ 390 440 ~ 450
Width (W) mm 270 ~ 285 330 ~ 340 370 ~ 400 470 ~ 490
Installation Length (L1) mm 230 ~ 280 260 ~ 310 260 ~ 390 440 ~ 475
Installation Width (W1) mm 155 ~ 165 180 ~ 230 220 ~ 265 300 ~ 340
Pin Diameter Ø 45 ~ 50 50 ~ 60 50 ~ 70 70 ~ 80
Application Excavator Ton 3 ~ 6 6 ~ 10 10 ~ 17 17 ~ 25

* The specifications of this equipment are subject to change for improvements.
