Features
- Advanced noise reducing housing system
- Extended stablized system and durablity
- Auto Lubrication / Greasing System
- Accumulator Stablizing System

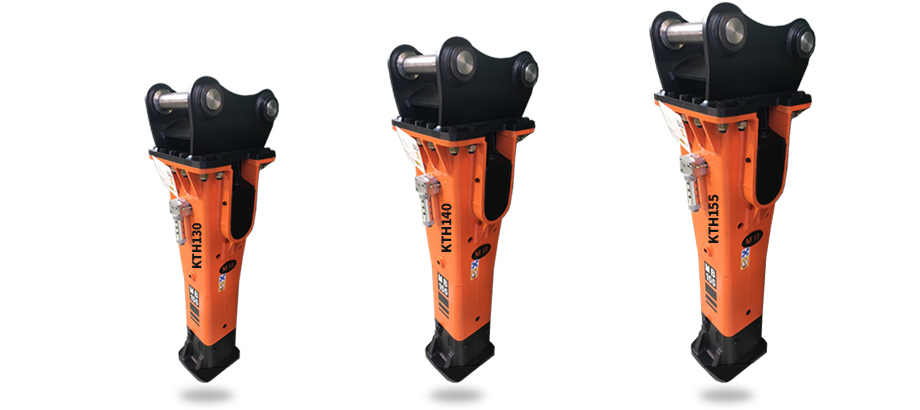

Silenced Type Specifiaction
| Model |
Unit |
KTH130 |
KTH140 |
KTH155 |
| Working Weight |
IBS |
3,718 |
4,840 |
5,830 |
| kg |
1,690 |
2,200 |
2,650 |
| Impact Frequency |
BPM |
350~500 |
350~450 |
320~420 |
| Impact Energy |
FT.IBS |
3,100 |
4,280 |
5,090 |
| J |
4,200 |
5,800 |
6,900 |
| Oil Supply |
GPM |
31.7~42.3 |
42.3~60.7 |
44.9~63.4 |
| LPM |
120~160 |
160~230 |
170~240 |
| Operating Pressure |
PSI |
1,990 |
1,990 |
2,060 |
| bar |
140 |
140 |
145 |
| Carrier Weight |
IBS |
39,600~66,000 |
55,000~88,000 |
77,000~121,000 |
| tons |
18~30 |
25~40 |
35~55 |
| Tool Diameter |
inch |
5.11 |
5.51 |
6.1 |
| mm |
130 |
140 |
155 |
